Sunday, October 2, 2011

N64 Goodness

Well it went alot easier than anticipated. The chip works wonderfully. I have to admit my soldering is getting a lot cleaner as well. If you're looking to go the USB route...I highly recommend this chip. You can grab it from www.raphnet.net .


Flip the controller over and remove the 9 screws. There are 7 on the backside

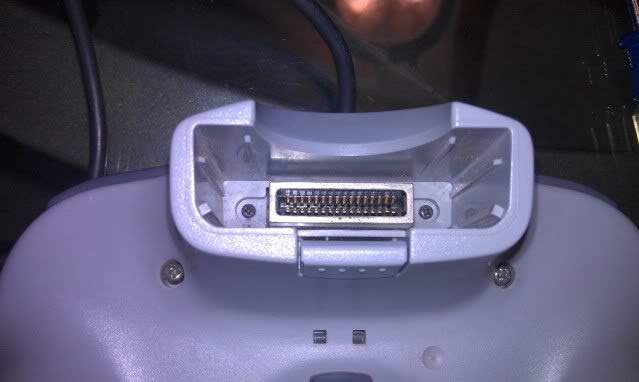

And here are the other 2 are where the memory pack goes. Be careful with these because the strip easisly.

This is what you will see when your case is open

Cut your wire from the where its connected to the board to about 3 inches up. You'll want to have enough wire to move the chip where you want.

Next comes the fun part. There are only 3 wires for the N64 controller. If you look closely at the board you can see where the + and - go. The last tab on the right of the chip is where your 3.3v+ wire (red) will go. Right next to it goes the negative wire (black). Now take your last wire (white) and solder it to the second tab. The very top tab is used for the 5 volt wire for the Gamecube, but since we are using an N64 controller we won't be needing it. Now that your controller is soldered you will need to solder the NES cord. There are also + and - signs and there is a G and W for the USB wires. Everything is still color coded just like the keyboard cord. Which is...

NES USB

Brown = Red +
Yellow = Black -
Orange = Green data
Red = White data


Cover the connections with hot glue on both sides to ensure that they won't break off. Once you've done that find a place to put it.

I put mine in the bottom left hand corner between the 2 screw holes.

Lastly, reassemble everything and this is what you will end up with

Finally you can test you controller out. Plug it in to one of the front ports.

Windows will start installing the new hardware. So to see if everything installed correctly you will want to open your Control Panel and then click view hardware and devices and then this will pop up.
You should see GC/N64_USB. You'll need to open the properties to the controller and config the analog stick. If you don't do this then your your stick won't work like it should.

And the most fun part of all...Play some games!
